CrossFlow™ (Industrial / Sea Water)

Hydroflux Industrial’s CrossFLOW Solids Separators are designed, specifically for industrial mining and high salinity applications. Including Anodisers, glass factories, tunnel construction, groundwater treatment, galvanizing plants, general industrial manufacture, steel, precious metal and mining.

With over 60 years of design and commissioning expertise, you can be assured that your Hydroflux CrossFlow™ Solids Separator will perform consistently with a long service life.

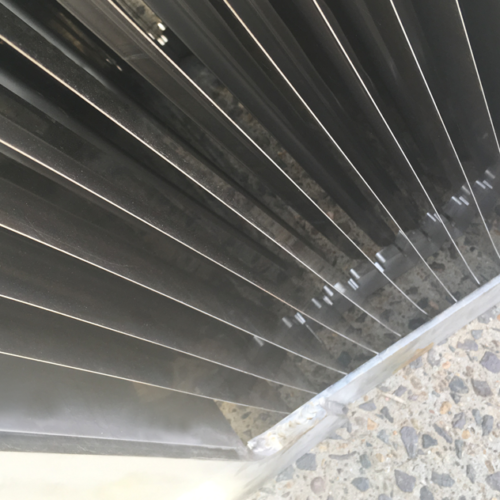

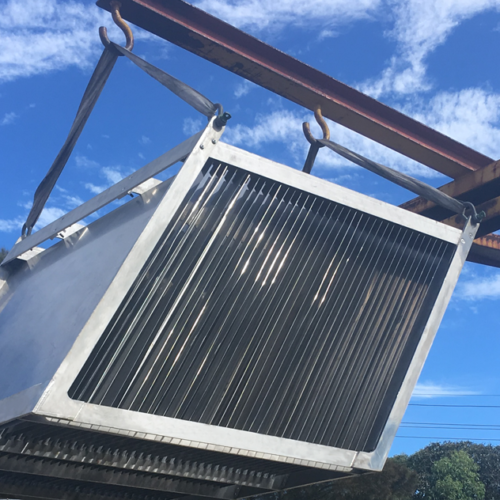

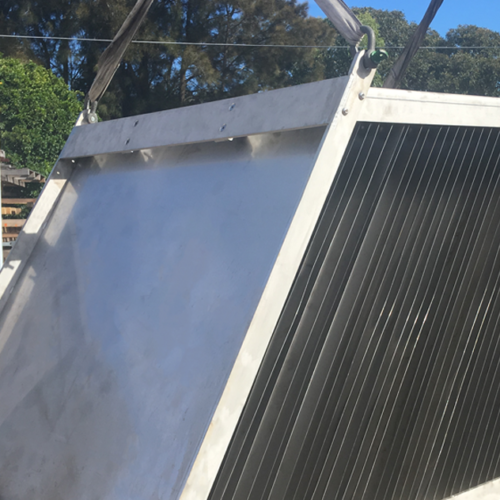

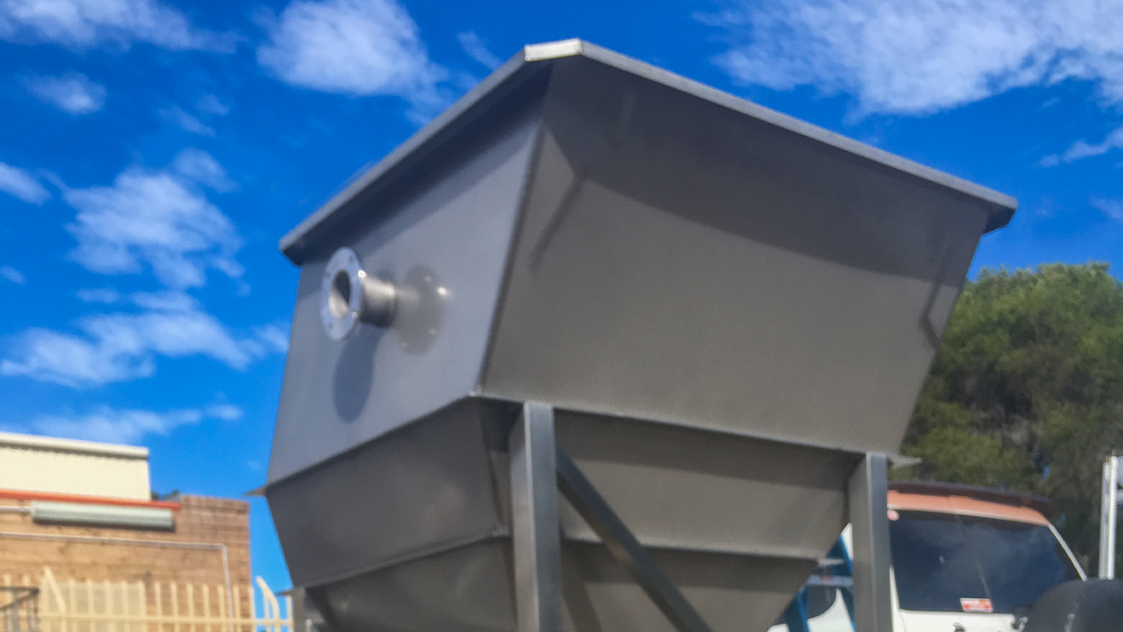

All Hydroflux CrossFlow™ Solids Separators are fabricated from 100% stainless steel. This includes the body, weirs, plates, plate frames and hopper.

Find out more

Key Features
Flow Configuration
  • High Effective Surface Area

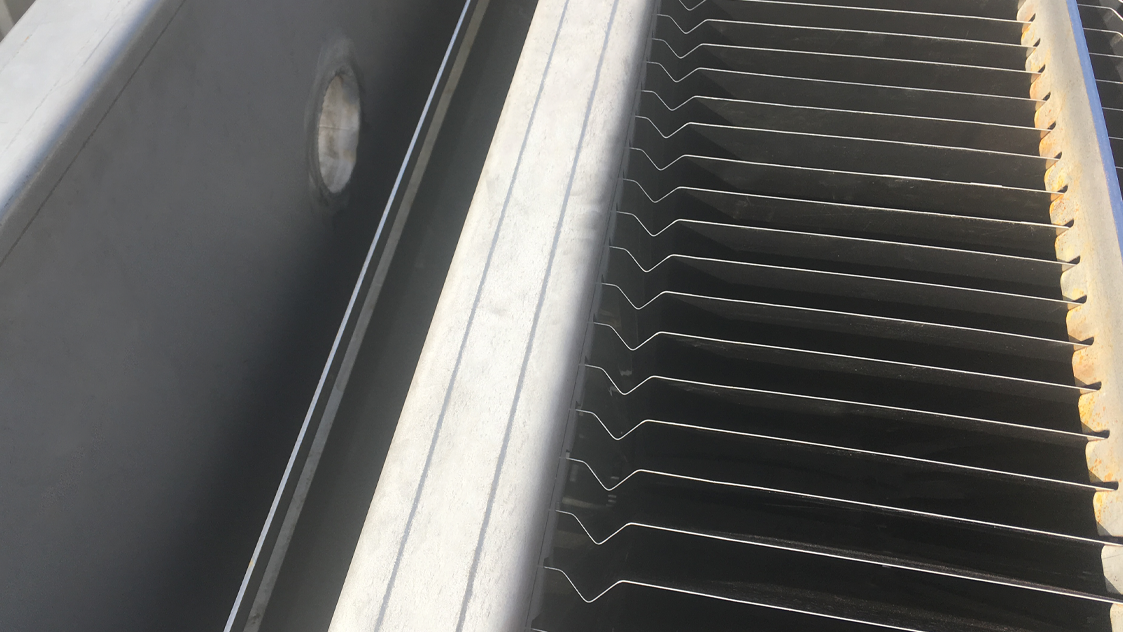

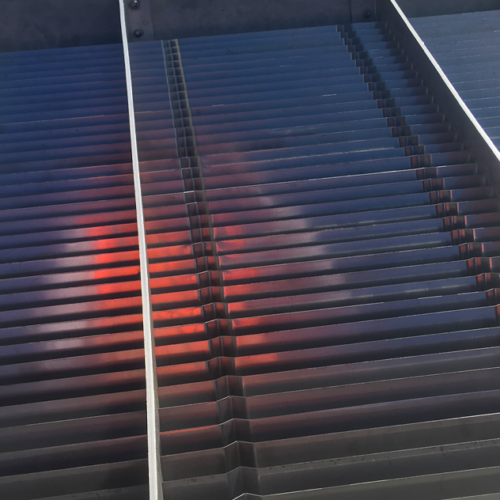

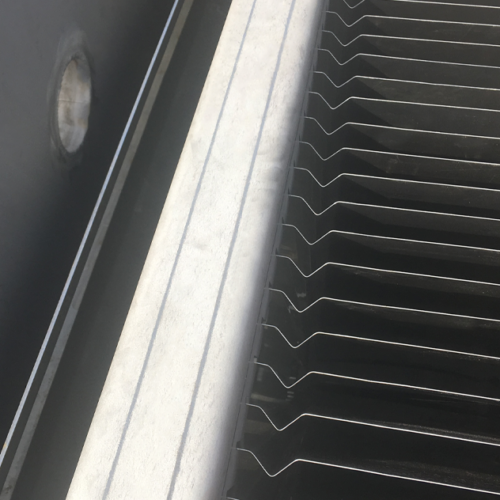

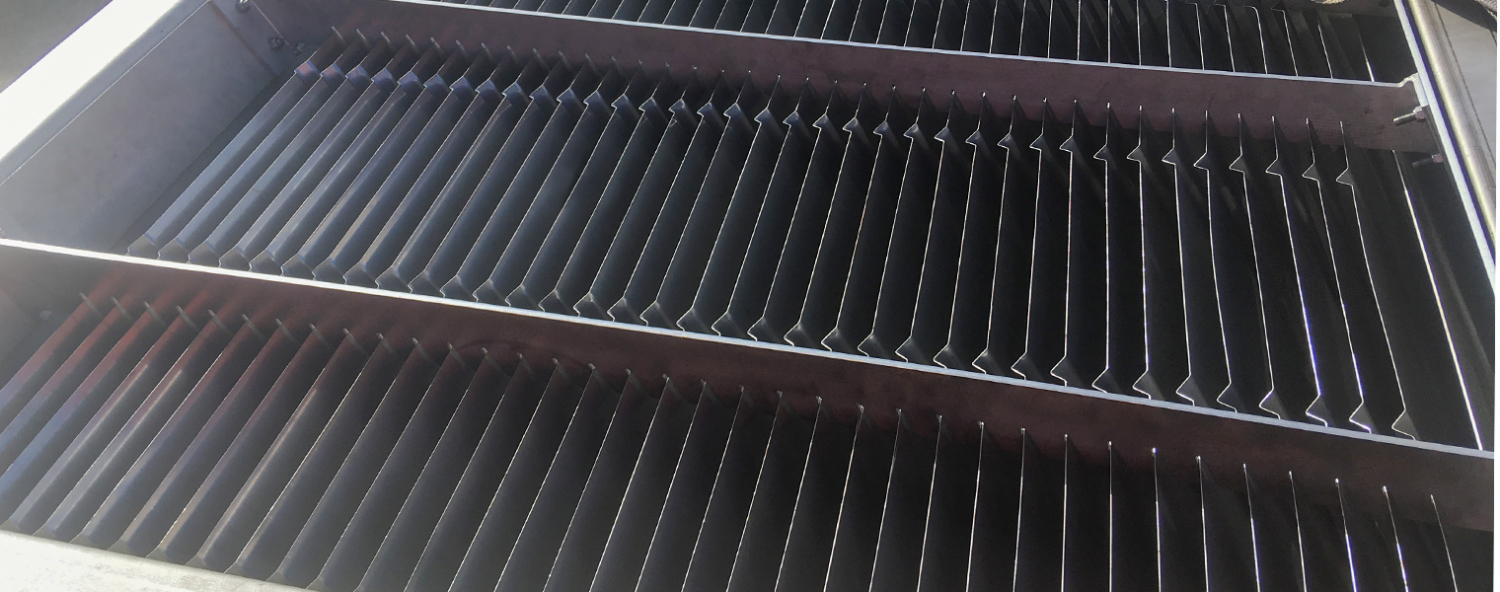

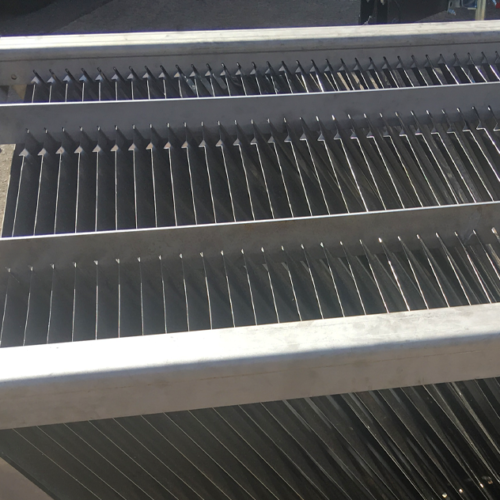

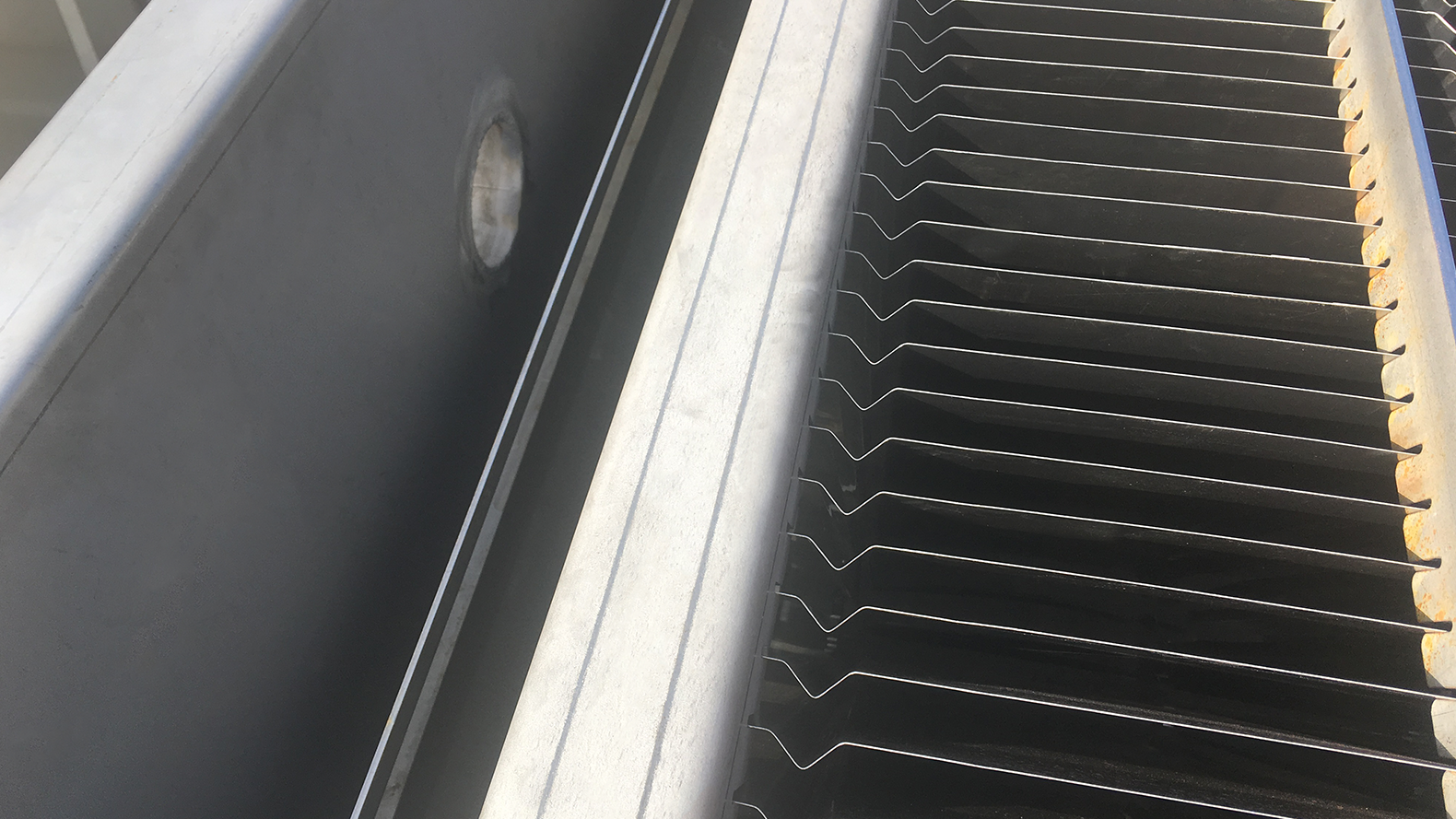

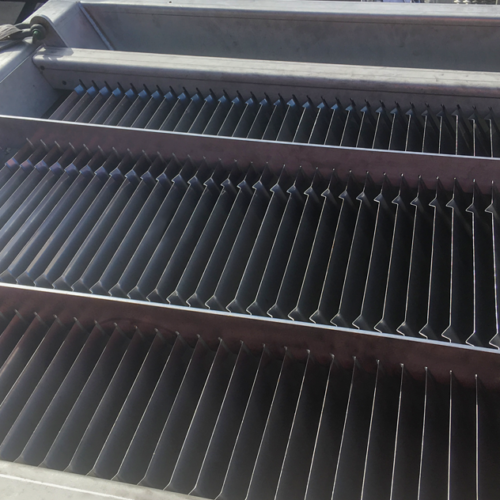

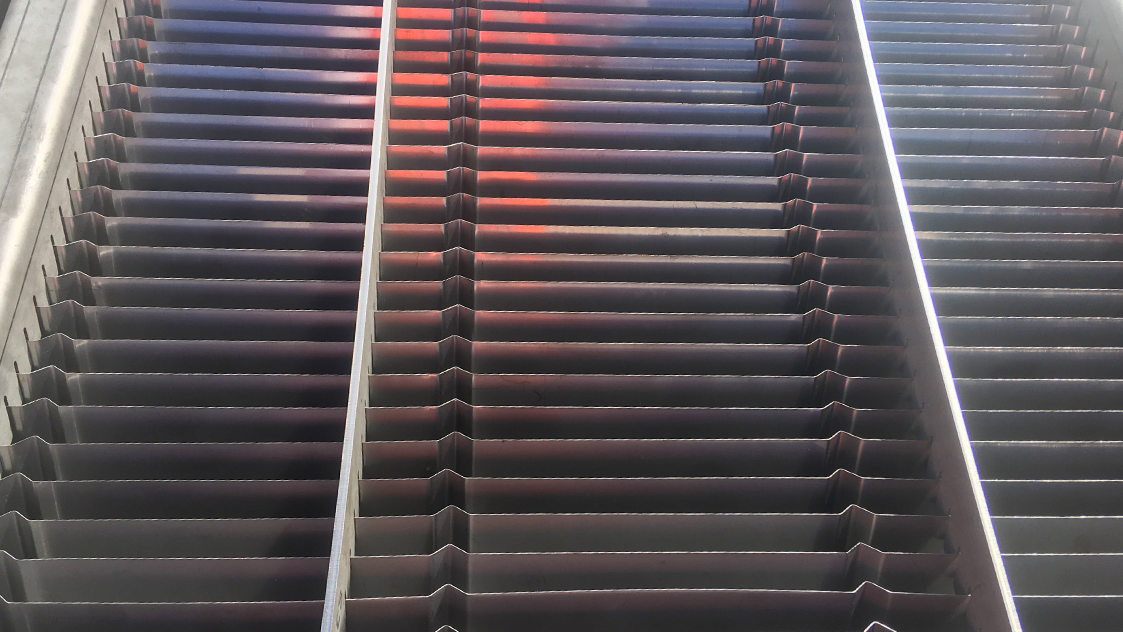

  • Non-clog Crossflow Lamella Plate Configuration
  • Chemically Resistant Design
  • 60° 20mm Plate Spacing as Standard
  • All Stainless Steel Construction
  • 60° Sludge Hopper Angle

Industrial and Mining

  • Primary solids and precipitate removal
  • Secondary clarification
  • Tertiary clarification
  • Raw water clarification
  • Corrosive applications

Seawater Desalination

  • Primary Settlement
  • Backwash water recovery
  • Lime softening

The CrossFlow™ Solids Separator range is available in the following standard sizes:

Model Plate Area* Flow Rate**
CS5 6.1m2 5.0kL/hr
CS10 11.5m2 10.0kL/hr
CS20 20.9m2 20.0kL/hr
CS30 31.3m2 30.0kL/hr
CS40 41.7m2 40.0kL/hr
CS60 62.6m2 60.0kL/hr
CS80 84.6m2 80.0kL/hr

* Plate Area Projected @ 60°
** Flowrate Subject to Application
